각 스트레인 게이지는 온도, 피로, 스트레인의 양 및 측정 환경의 측면에서 한계가 있습니다. 스트레인 게이지를 사용하기 전에 이러한 제한 사항들을 검토해야합니다.

목재, 석고용 스트레인 게이지 (LF / PFLW/PLW series)

목재, 석고용 스트레인 게이지 (LF / PFLW/PLW series)

목재 및 석고용 LF 시리즈 스트레인 게이지는 특수 플라스틱을 배킹에 사용한 호일 게이지입니다. 격자 패턴은 탄성 계수가 낮은 재료의 측정에 적합하며 시편에 대한 스트레인 게이지의 강화 효과를 줄입니다. 게이지는 11×10-6/℃ 재료에 대해 자체 온도 보상됩니다. CE 마크가 있는 새로운 시리즈의 스트레인 게이지 GOBET이 추가되었습니다. 이 CE 준수 제품 시리즈는 RoHS 지침을 준수합니다. 이 게이지는 무연 솔더링과 독특한 탭 디자인을 갖춘 기존 스트레인 게이지의 기능을 능가합니다. CE 대응 연장 리드선도 준비되어 있습니다.
  • 상세 설명
Applicable specimenWood, Gypsum
Operational temperatureLF GOBLET ：-30 to +80 ℃
LF：-20 to +80 ℃
Temperature compensation range+10 to +80 ℃
Applicable adhesiveCN-E
BackingSpecial plastics
ElementCu-Ni
Strain limit3% (30000 x 10-6 strain)
Fatigue life at room temperature1 x 106 (±1500 x 10-6 strain)

  • LOW ELASTIC MATERIALS - WOOD, GYPSUM USE goblet_log_s CE_logo

    Gauge patternTypeGauge
    length
    (mm)    		Gauge
    width
    (mm)    		Backing
    length
    (mm)    		Backing
    width
    (mm)    		Resistance
    (Ω)
    lflab_1011LFLAB-10-11103.118.55.3120

    Each package contains 10 gauges.
    * Attachment of lead wiring can be performed (made-to-order).

  • LOW ELASTIC MATERIALS - WOOD, GYPSUM USE

    Gauge patternTypeGauge
    length
    (mm)    		Gauge
    width
    (mm)    		Backing
    length
    (mm)    		Backing
    width
    (mm)    		Resistance
    (Ω)
    lfla_1011LFLA-10-11103.118.55.3120

    Each package contains 10 gauges.
    * Attachment of lead wiring can be performed (made-to-order).

  • Lead wires recommended for LF series strain gauges (made-to-order)

    Lead wires recommended for LF series strain gauges

    PurposeLead wiresLead wire symbolOperating temperature range
    (℃ )    		Gauge type exampled
    General measurement
    (no temperature change)    		2-wire parallel vinyl wireLJC/LJC-F－20 to +80LFLA-10-11-3LJC
    General measurement3-wire parallel vinyl wireLJCT/LJCT-F－20 to +80LFLA-10-11-3LJCT

    * Only lead wires using lead-free solder are available for GOBLET series strain gauges with the CE marking.

More Information

PFLW/PLW series WOOD-long term use strain gaugeCE

This gauge has a thin metal backing for long term measurement on woods, not affected by moisture contained in wood. The gauge is bonded with PS adhesive.

Applicable specimenWood
Operational temperature-20 to +80 ℃
Temperature compensation range+10 to +80 ℃
Applicable adhesivePS
BackingPolyester
ElementCu-Ni (wire)
Strain limit2% (20000 x 10-6 strain)
Fatigue life at room temperature1 x 105 (±1000 x 10-6 strain)

  • Single-element(G.F. 2.1 approx.)

    img_pflw_plw_01

    TypeGauge
    length
    (mm)    		Gauge
    width
    (mm)    		Backing
    length
    (mm)    		Backing
    width
    (mm)    		Resistance
    (Ω)
    PFLW-30-11302.3407120
    PFLW-30-11601748120

    * Optional -F availability (lead-free solder)
    Each package contains 10 gauges.

  • Lead wires recommended for PFLW/PLW series strain gauges (made-to-order)

    PurposeLead wiresLead wire symbolOperational temperature range
    (℃)    		Gauge type exampled
    General measurement
    (no temperature change)    		2-wire parallel vinyl wireLJC-F－20 to ＋80PFLW-30-11-3LJC-F
    General measurement3-wire parallel vinyl wireLJCT-F－20 to ＋80PFLW-30-11-3LJCT-F
    Medium/high temperature3-wire parallel special vinyl wireLXT-F－20 to ＋150PFLW-30-11-3LXT-F
    1-gauge 4-wire methodPolypropylene 4-wire parallel wire
    (with modular)    		LQM-F－20 to ＋100PFLW-30-11-3LQM-F

  • Leadwire-integral PFLW/PLW series (single-element)

    0.11 mm2 integral vinyl leadwire　Total leadwire resistance per meter : 0.32 Ω

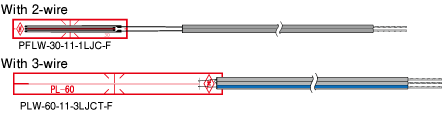

    img_pflw_plw_02

    TypeGauge
    length
    (mm)    		Gauge
    width
    (mm)    		Backing
    length
    (mm)    		Backing
    width
    (mm)    		Resistance
    (Ω)    		Lead wire
    pre-attached    		Type name
    of lead wire
    preattached
    PFLW-30-11302.3407120Paralleled 1m
    Paralleled 3m
    Paralleled 5m
    3-wire 3m
    3-wire 5m    		-1LJC-F
    -3LJC-F
    -5LJC-F
    -3LJCT-F
    -5LJCT-F
    PFLW-30-11601748120Paralleled 1m
    Paralleled 3m
    Paralleled 5m
    3-wire 3m
    3-wire 5m    		-1LJC-F
    -3LJC-F
    -5LJC-F
    -3LJCT-F
    -5LJCT-F

    * Optional -F availability (lead-free solder)
    Each package contains 10 gauges.

More Information
