범용 스트레인 게이지 (F 시리즈 GOBLET)

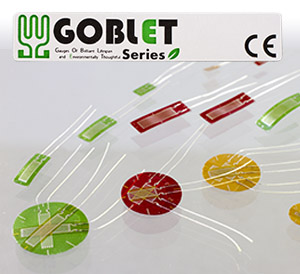

이것은 일반적인 사용 스트레인 게이지 F 시리즈에서 유래한 CE 마크 스트레인 게이지입니다. RoHS 2 Directive 2011 / 65 / EU를 준수하며 CE 마킹과 함께 제공됩니다. 이 스트레인 게이지는 당사 제품 라인에서 가장 일반적으로 사용되는 스트레인 게이지인 기존 F 시리즈 게이지 외에 GOBLET로 제공됩니다. 이 스트레인 게이지의 뒷면은 자체 온도 보상을위한 재료 식별을 위해 색상으로 구분되어 있습니다. 연장 리드선은 CE 마킹으로도 제공됩니다.

상세 설명

적용 표본	금속, 세라믹, 합성물
작동 온도	-196 to +150 ℃
온도 보상 범위	+10 to +100 ℃
적용 가능한 접착제	CN, P-2, EB-2
Backing 재질	특수 플라스틱
Element	Cu-Ni 합금 foil
변형 한계	5 % (50000 x 10-6 strain)
실온에서의 피로 수명	1 x 106 (±1500 x 10-6 strain)

For general measurement Single-element / two-element / three-element

Single-element (G.F. 2.1 approx.)

Type	Gauge length (mm)	Gauge width (mm)	Backing length (mm)	Backing width (mm)	Resistance (Ω)
FLGB-02-11 FLGB-02-17 FLGB-02-23	0.2	1.4	3.5	2.5	120
FLGB-1-11 FLGB-1-17 FLGB-1-23	1	1.1	6	2.5	120
FLAB-03-11 FLAB-03-17 FLAB-03-23	0.3	1.4	3	2	120
FLAB-05-11 FLAB-05-17 FLAB-05-23	0.5	1.2	4.3	2.2	120
FLAB-1-11 FLAB-1-17 FLAB-1-23	1	1.3	5	2.5	120
FLAB-1-350-11 FLAB-1-350-17 FLAB-1-350-23	1	1.6	4.5	3	350
FLAB-1W-350-11 FLAB-1W-350-17 FLAB-1W-350-23	1	2	4.7	3.6	350
FLAB-2-11 FLAB-2-17 FLAB-2-23	2	1.5	6.5	3	120
FLAB-2-350-11 FLAB-2-350-17 FLAB-2-350-23	2	1.9	6	3.5	350
FLAB-3-11 FLAB-3-17 FLAB-3-23	3	1.7	7.7	3.5	120
FLAB-3-60-11 FLAB-3-60-17 FLAB-3-60-23	3	1.2	7.7	3	60
FLAB-3-350-11 FLAB-3-350-17 FLAB-3-350-23	3	1.6	7.2	3	350
FLAB-3W-350-11 FLAB-3W-350-17 FLAB-3W-350-23	3	3.2	8.5	5	350
FLAB-5-11 FLAB-5-17 FLAB-5-23	5	1.5	10	3	120
FLAB-5-350-11 FLAB-5-350-17 FLAB-5-350-23	5	1.8	9.4	3.8	350
FLAB-6-11 FLAB-6-17 FLAB-6-23	6	2.2	11	4.3	120
FLAB-6-1000-11 FLAB-6-1000-17 FLAB-6-1000-23	6	4.6	11	7	1000
FLAB-10-11 FLAB-10-17 FLAB-10-23	10	2.5	15.4	5	120
FLAB-30-11 FLAB-30-17 FLAB-30-23	30	2	35	5	120
FLKB-1-11 FLKB-1-17 FLKB-1-23	1	0.7	4.5	1.4	120
FLKB-2-11 FLKB-2-17 FLKB-2-23	2	0.9	5.5	1.5	120
FLKB-6-11 FLKB-6-17 FLKB-6-23	6	1	11	2.2	120
FLKB-10-11 FLKB-10-17 FLKB-10-23	10	1.6	15	3.8	120

Each package contains 10 strain gauges.

2-element 0°/90° Stacked type (G.F. 2.1 approx.)

Type	Gauge length (mm)	Gauge width (mm)	Backing length (mm)	Resistance (Ω)
FCAB-1-11 FCAB-1-17 FCAB-1-23	1	0.7	Φ4.5	120
FCAB-1-350-11 FCAB-1-350-17 FCAB-1-350-23	1	1.6	Φ8	350
FCAB-2-11 FCAB-2-17 FCAB-2-23	2	0.9	Φ7	120
FCAB-2-350-11 FCAB-2-350-17 FCAB-2-350-23	2	1.9	Φ9.5	350
FCAB-3-11 FCAB-3-17 FCAB-3-23	3	1.7	Φ11	120
FCAB-3-350-11 FCAB-3-350-17 FCAB-3-350-23	3	2	Φ10	350
FCAB-5-11 FCAB-5-17 FCAB-5-23	5	1.9	Φ12	120
FCAB-5-350-11 FCAB-5-350-17 FCAB-5-350-23	5	1.8	Φ10	350
FCAB-6-11 FCAB-6-17 FCAB-6-23	6	2.4	Φ14	120
FCAB-10-11 FCAB-10-17 FCAB-10-23	10	2.5	Φ17	120

Each package contains 10 strain gauges.

3-element 0°/45°/90° Stacked type (G.F. 2.1 approx.)

Type	Gauge length (mm)	Gauge width (mm)	Backing length (mm)	Resistance (Ω)
FRAB-1-11 FRAB-1-17 FRAB-1-23	1	0.7	Φ4.5	120
FRAB-1-350-11 FRAB-1-350-17 FRAB-1-350-23	1	1.6	Φ8	350
FRAB-2-11 FRAB-2-17 FRAB-2-23	2	0.9	Φ7	120
FRAB-2-350-11 FRAB-2-350-17 FRAB-2-350-23	2	1.9	Φ9.5	350
FRAB-3-11 FRAB-3-17 FRAB-3-23	3	1.7	Φ11	120
FRAB-3-350-11 FRAB-3-350-17 FRAB-3-350-23	3	2	Φ10	350
FRAB-5-11 FRAB-5-17 FRAB-5-23	5	1.9	Φ12	120
FRAB-5-350-11 FRAB-5-350-17 FRAB-5-350-23	5	1.8	Φ10	350
FRAB-6-11 FRAB-6-17 FRAB-6-23	6	2.4	Φ14	120
FRAB-10-11 FRAB-10-17 FRAB-10-23	10	2.5	Φ17	120

Each package contains 10 strain gauges.

Glass/Ceramic materials use

Gauge pattern	Type	Gauge length (mm)	Gauge width (mm)	Backing length (mm)	Backing width (mm)	Resistance (Ω)
Single-element (G.F. 2.1 approx.)	FLAB-2-8	2	1.5	6.5	3	120
Single-element (G.F. 2.1 approx.)	FLAB-5-8	5	1.5	10	3	120
90°2-element Rosette (G.F. 2.1 approx.) Stacked type	FCAB-2-8	2	0.9	Φ7		120
90°2-element Rosette (G.F. 2.1 approx.) Stacked type	FCAB-5-8	5	1.9	Φ12		120
45°/90° 3-element Rosette (G.F. 2.1 approx.) Stacked type	FRAB-2-8	2	0.9	Φ7		120
45°/90° 3-element Rosette (G.F. 2.1 approx.) Stacked type	FRAB-5-8	5	1.9	Φ12		120

Each package contains 10 strain gauges.

Dedicated integral lead wire recommended for F series

For general use of GOBLET (qualified for CE marking)

Application	Product name	Lead wire code	Applicable temperature of leadwire (℃)	Example of type name
General use (without temperature change)	Paralleled vinyl	LJB-F	-20 to +80	FLAB-5-11-3LJB-F
General use (without temperature change)	Paralleled vinyl	LJC-F	-20 to +80	FLAB-5-11-3LJC-F
General use	3-wire paralleled vinyl	LJBT-F	-20 to +80	FLAB-5-11-3LJBT-F
General use	3-wire paralleled vinyl	LJCT-F	-20 to +80	FLAB-5-11-3LJCT-F
Middle - high temperature	3-wire paralleled vinyl	LXT-F	-20 to +150	FLAB-5-11-3LXT-F
1-gauge 4-wire	Polypropylene 4-wire paralleled (modular plug attached)	LQM-F	-20 to +100	FLAB-5-11-3LQM-F

Only the leadwires using lead-free solder are available for GOBLET strain gauges with CE marking.
Note that “-F” is appended to the type name of the leadwire using lead-free solder.

Standard leadwire integrated strain gauge

Single-element

Used leadwire: 0.11 mm2 Total resistance of leadwire per meter: 0.32 Ω

img_flab_ljb

Type	Gauge length (mm)	Gauge width (mm)	Backing length (mm)	Backing width (mm)	Resistance (Ω)	Lead wire pre-attached	Type name of lead wire preattached
FLAB-1-11 FLAB-1-17 FLAB-1-23	1	1.3	5	2.5	120	Paralleled 1 m Paralleled 3 m Paralleled 5 m 3-wire 3 m 3-wire 5 m	-1LJC-F -3LJC-F -5LJC-F -3LJCT-F -5LJCT-F
FLAB-2-11 FLAB-2-17 FLAB-2-23	2	1.5	6.5	3	120	Paralleled 1 m Paralleled 3 m Paralleled 5 m 3-wire 3 m 3-wire 5 m	-1LJC-F -3LJC-F -5LJC-F -3LJCT-F -5LJCT-F
FLAB-3-11 FLAB-3-17 FLAB-3-23	3	1.7	7.7	3.5	120	Paralleled 1 m Paralleled 3 m Paralleled 5 m 3-wire 3 m 3-wire 5 m	-1LJC-F -3LJC-F -5LJC-F -3LJCT-F -5LJCT-F
FLAB-5-11 FLAB-5-17 FLAB-5-23	5	1.5	10	3	120	Paralleled 1 m Paralleled 3 m Paralleled 5 m 3-wire 3 m 3-wire 5 m	-1LJC-F -3LJC-F -5LJC-F -3LJCT-F -5LJCT-F
FLAB-6-11 FLAB-6-17 FLAB-6-23	6	2.2	11	4.3	120	Paralleled 1 m Paralleled 3 m Paralleled 5 m 3-wire 3 m 3-wire 5 m	-1LJC-F -3LJC-F -5LJC-F -3LJCT-F -5LJCT-F

Minimum order quantity is 10 gauges.

2-element 0°/90° rosette

Used leadwire: 0.08 mm2 Total resistance of leadwire per meter: 0.44 Ω

img_fcab_ljb

Type	Gauge length (mm)	Gauge width (mm)	Backing (mm)	Resistance (Ω)	Lead wire pre-attached	Type nameof lead wire preattached
FCAB-1-11 FCAB-1-17 FCAB-1-23	1	0.7	Φ4.5	120	Paralleled 1 m Paralleled 3 m Paralleled 5 m 3-wire 3 m 3-wire 5 m	-1LJB-F -3LJB-F -5LJB-F -3LJBT-F -5LJBT-F
FCAB-2-11 FCAB-2-17 FCAB-2-23	2	0.9	Φ7	120	Paralleled 1 m Paralleled 3 m Paralleled 5 m 3-wire 3 m 3-wire 5 m	-1LJB-F -3LJB-F -5LJB-F -3LJBT-F -5LJBT-F
FCAB-3-11 FCAB-3-17 FCAB-3-23	3	1.7	Φ11	120	Paralleled 1 m Paralleled 3 m Paralleled 5 m 3-wire 3 m 3-wire 5 m	-1LJB-F -3LJB-F -5LJB-F -3LJBT-F -5LJBT-F
FCAB-5-11 FCAB-5-17 FCAB-5-23	5	1.9	Φ12	120	Paralleled 1 m Paralleled 3 m Paralleled 5 m 3-wire 3 m 3-wire 5 m	-1LJB-F -3LJB-F -5LJB-F -3LJBT-F -5LJBT-F
FCAB-6-11 FCAB-6-17 FCAB-6-23	6	2.4	Φ14	120	Paralleled 1 m Paralleled 3 m Paralleled 5 m 3-wire 3 m 3-wire 5 m	-1LJB-F -3LJB-F -5LJB-F -3LJBT-F -5LJBT-F
FCAB-10-11 FCAB-10-17 FCAB-10-23	10	2.5	Φ17	120	Paralleled 1 m Paralleled 3 m Paralleled 5 m 3-wire 3 m 3-wire 5 m	-1LJB-F -3LJB-F -5LJB-F -3LJBT-F -5LJBT-F

Minimum order quantity is 10 gauges.

3-element 0°/45°/90° rosette

Used leadwire: 0.08 mm2 Total resistance of leadwire per meter: 0.44 Ω

img_frab_ljb

Type	Gauge length (mm)	Gauge width (mm)	Backing (mm)	Resistance (Ω)	Lead wire pre-attached	Type name of lead wire preattached
FRAB-1-11 FRAB-1-17 FRAB-1-23	1	0.7	Φ4.5	120	Paralleled 1 m Paralleled 3 m Paralleled 5 m 3-wire 3 m 3-wire 5 m	-1LJB-F -3LJB-F -5LJB-F -3LJBT-F -5LJBT-F
FRAB-2-11 FRAB-2-17 FRAB-2-23	2	0.9	Φ7	120	Paralleled 1 m Paralleled 3 m Paralleled 5 m 3-wire 3 m 3-wire 5 m	-1LJB-F -3LJB-F -5LJB-F -3LJBT-F -5LJBT-F
FRAB-3-11 FRAB-3-17 FRAB-3-23	3	1.7	Φ11	120	Paralleled 1 m Paralleled 3 m Paralleled 5 m 3-wire 3 m 3-wire 5 m	-1LJB-F -3LJB-F -5LJB-F -3LJBT-F -5LJBT-F
FRAB-5-11 FRAB-5-17 FRAB-5-23	5	1.9	Φ12	120	Paralleled 1 m Paralleled 3 m Paralleled 5 m 3-wire 3 m 3-wire 5 m	-1LJB-F -3LJB-F -5LJB-F -3LJBT-F -5LJBT-F
FRAB-6-11 FRAB-6-17 FRAB-6-23	6	2.4	Φ14	120	Paralleled 1 m Paralleled 3 m Paralleled 5 m 3-wire 3 m 3-wire 5 m	-1LJB-F -3LJB-F -5LJB-F -3LJBT-F -5LJBT-F
FRAB-10-11 FRAB-10-17 FRAB-10-23	10	2.5	Φ17	120	Paralleled 1 m Paralleled 3 m Paralleled 5m 3-wire 3 m 3-wire 5 m	-1LJB-F -3LJB-F -5LJB-F -3LJBT-F -5LJBT-F

Minimum order quantity is 10 gauges.
