DT3016/DT3034 (32 SE/16 DI 아날로그 측정 PCI 카드)

DT3016/DT3034 (32 SE/16 DI 아날로그 측정 PCI 카드)

  • 상세 설명

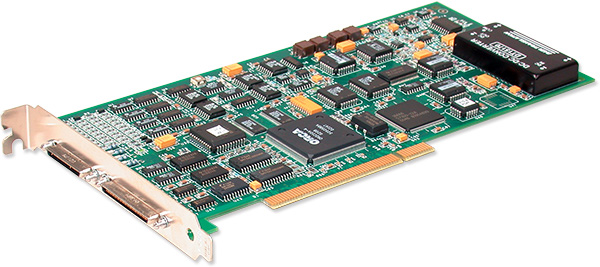

PCI 버스를 위한 고성능 및 고해상도 다기능 데이터 수집

저비용 모듈에서 고성능, 다기능 보드에 이르기까지 모든 애플리케이션 및 예산을 위한 PCI 데이터 수집 보드. 아날로그 출력 보드와 디지털 I/O용 카드를 사용할 수 있습니다.


  • 32 SE/16 DI 아날로그 입력
  • 최대 500kHz 전체 샘플링 속도
  • 16비트 해상도
  • 채널당 최대 500kHz에서 2개의 파형 아날로그 출력
  • 아날로그 입력과 동기화할 수 있는 16개의 디지털 I/O.
  • 4 카운터/타이머(16비트)
  • Pre, Post, About, Threshold 트리거를 포함한 유연한 클럭 및 트리거링 기능.




DT3034
High-Speed 16 bit Multifunction Data Acquisition for PCI-Bus

  • Overall Sampling Speed 500 kHz
  • 16-Bit Resolution
  • 2 Waveform Analog Outputs at up to 500 kHz per channel, with 4 kSample output buffer


DT3016 (단종)
High-Performance and High-Resolution Multifunction Data Acquisition for PCI-Bus

  • Overall Sampling Speed 250 kHz
  • 16-Bit Resolution
  • 2 Waveform Analog Outputs at up to 200 kHz per channel, with 4 kSample output buffer


악세서리



DT740
Table Top Screw Terminal Panel for DT3016/DT3034

  • Interfaces through 50-way High Densitiy connector to analog I/O
  • Interfaces through 68-way High Densitiy connector to digital I/O
  • supports current loop shunts


EP307
50-way cable for analog signals for use with DT3034, DT3016, DT3010

  • 50-way High Density Connector
  • Screened cable
  • Length: 1m


EP307-3
50-way cable for analog signals for use with DT3034, DT3016, DT3010

  • 50-way, High Density Connector
  • Screened cable
  • Length: 3m


EP308
68-way cable for digital signals for use with DT3034, DT3016, DT3010

  • 68-way High Density Connector
  • Screened cable
  • Length: 1m


EP308-3
68-way cable for digital signals for use with DT3034, DT3016, DT3010

  • 68-way High Density Connector
  • Screened cable
  • Length: 3m


Images
Show file DT3034
Show file DT3016
Drawings
Show file Mechanical Drawing
White Papers
Show file ENOB for DT3034
Show file ENOB - Effective Number of Bits
Overall Accuracy - The Accurate Way to Choose a Data Acquisition Board


소프트웨어 링크



QuickDAQ
Free Data Logger Application - Upgradeable with FFT Analysis Options

  • Two extensions add FFT analysis capabilities to the free base package.
  • QuickDAQ FFT Analysis Options allow serious sound & vibration analysis supporting modal analysis and ODS analysis methods.
  • Single-Channel and Dual-Channel (frequency response) FFT operations


DT Data Acquisition Omni Software
Application Software for Data Acquisition

  • Device drivers for Windows 10 / 8.1 / 8 (64-bit and 32-bit), Windows 7 (64-bit and 32-bit), Windows Vista (64-bit and 32-bit) and Windows XP (32-bit only). The installation program automatically installs the appropriate driver for your operating system.
  • DT-Open Layers for .NET - 32-bit and 64-bit native class library for all languages that conform to the Common Language Specification (CLS), including Visual C#, Visual Basic.NET, Visual C++.NET, Visual J#.NET, ...
  • DT-Open Layers (DataAcq SDK) - Software Development Kit. A library of API functions in Microsoft C or C++. 32-bit and 64-bit native Windows support.


DT-Open Layers
Native .NET class library and Win32 DLL library


  • Full support for Microsoft Visual Studio® 2005, 2008, 2010, and 2012.
  • Built using managed code, virtually eliminating memory leaks.
  • Easy configuration of all subsystem parameters.


LV-Link
Use DT USB and PCI data acquisition boards with NI LabVIEW™

  • Create test and measurement applications for Data Translation DT-Open Layers compliant USB and PCI hardware using NI LabVIEW
  • Consistent with the design and layout of the LabVIEW DAQmx VIs
  • Measure and control analog I/O, digital I/O, quadrature decoders, counter/timer signals


DAQ Adaptor for MATLAB®
Interface to MATLAB

  • Single environment for acquisition, analysis, and visualization.
  • Measurement with the Data Acquisition Toolbox
  • Direct access to all DT-Open Layers-compliant Data Translation USB and PCI modules.


DASYLab
Download our latest DASYLab drivers

  • Create complex applications in minimal time without programming
  • Lets you build worksheets using graphical functions
  • Implements real-time operations, including PID control
